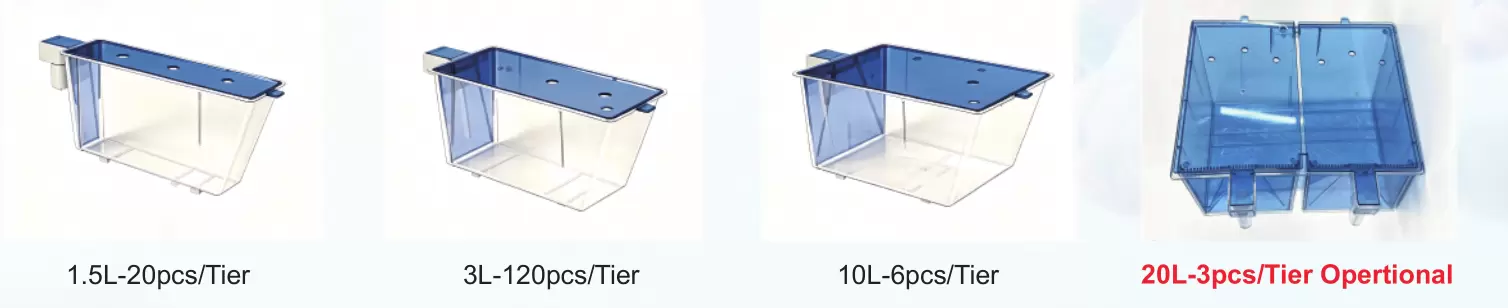

Modular Culture Units
Culture units support custom combinations as needed, accommodating 4-tier single/double row, 5-tier single/double row, and multi-connected housing configurations.
Zebrafish
Culture units support custom combinations as needed, accommodating 4-tier single/double row, 5-tier single/double row, and multi-connected housing configurations.
Culture units support custom combinations as needed, accommodating 4-tier single/double row, 5-tier single/double row, and multi-connected housing configurations.
The system is controlled via a robotic arm touchscreen, which can also be extended to a central display in the fish facility to enable real-time statistics between parent and sub culture units
An intelligent photoperiod lighting module highly simulates the day/night light environment of zebrafish. It also provides light compensation for the culture space with adjustable and customizable illumination levels.
A color digital touchscreen control panel displays real-time monitoring data for temperature, pH, conductivity, dissolved oxygen, and ammonia nitrogen. It also supports mobile management and control, eliminating the need for on-site presence 24/7. One-touch start/stop and risk alerts ensure worry-free culture operations.
The highly integrated water quality control system ofers strong expandability, and is equipped with a residual current circuit breaker and low water level protector for complete safety.
Parameters can be read and the system controlled remotely via a mini-program.

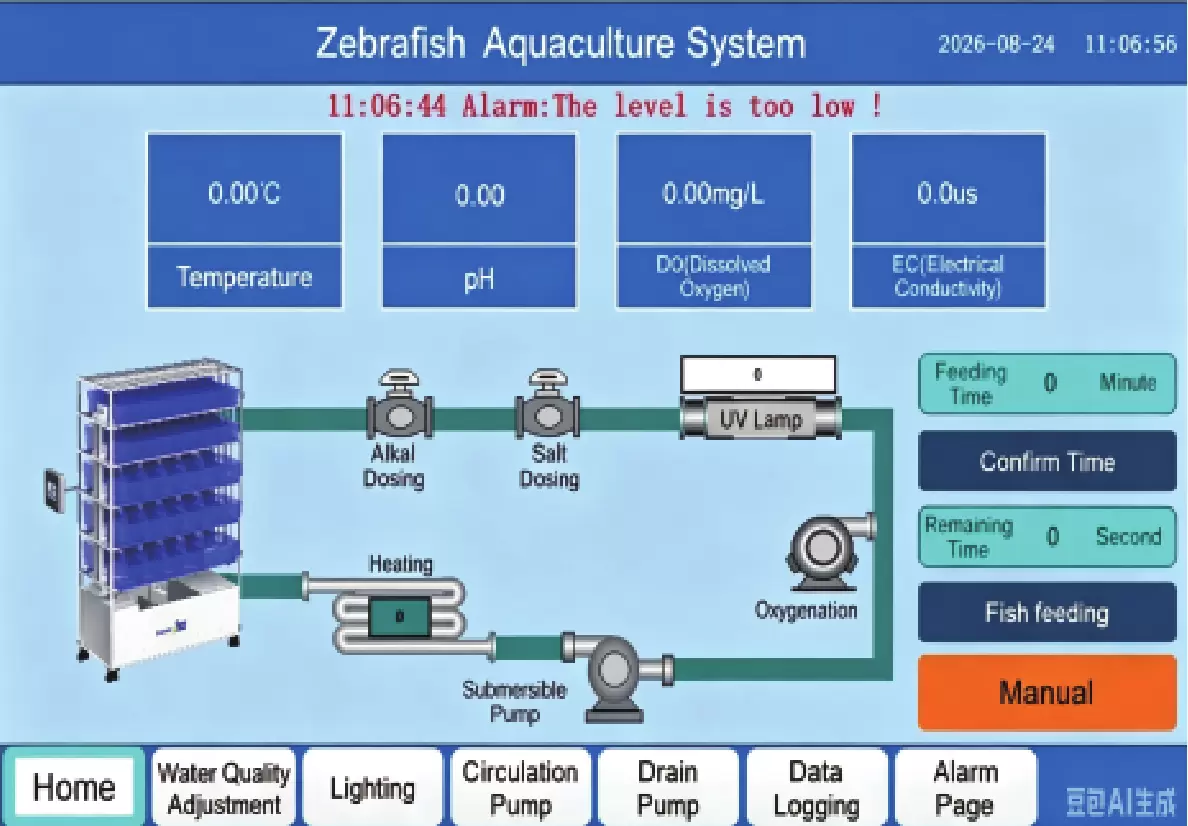

Interface:
The controller is equipped with touch-screen HMI for parameter setup, real-time monitoring and alarm checking.
Water-Quality Adjustment Parameters
The water quality interface precisely sets temperature, pH, conductivity and dissolved
oxygen. The system automatically adjusts in real time to maintain optimal culture
conditions for zebrafish growth and reproduction.
pH Interface
Enter pH high/low alarm limits, setpoint and tolerance, save to activate auto-adjustment.
High alarm triggers above upper limit; low alarm triggers below lower limit, alkali dosing
pump turns on and stops once reaching setpoint.
Dissolved Oxygen Interface
Set DO high/low limits and setpoint then save. Alarms activate when out of range. Oxygen
pump starts below lower limit and stops at setpoint. Max aeration mode runs pump contin-
uously.
Temperature Interface
Set temperature high/low limits and setpoint then save. Temperature out-of-range triggers alarms. Heater activates below lower limit and stops at setpoint.
EC Interface
Set conductivity high/low limits and setpoint then save. Out-of-range triggers alarms. Salt dosing pump activates below lower limit and stops at setpoint.
Calibrate Interface
1. Offset adjustment: add/subtract values for pH, DO, temperature and conductivity to modify real-time readings.
2. Sensor Calibration:
2-point pH calibration: immerse probe sequentially in pH6.86 and pH4.01 buffer solutions, wait 3–5 min each before confirming calibration.
1-point EC calibration: immerse probe in 1413 µS standard solution, wait 3–5 min to finish calibration

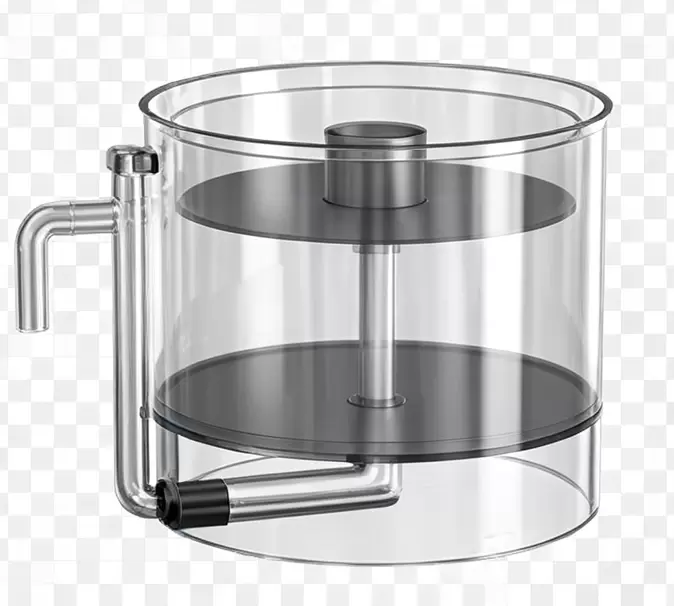

Centralized Spawning Breeder
The product is designed for large-scale centralized spawning of zebrafish. It can be quickly connected to a recirculating water
system with visible and adjustable circulation flow rate, capable of housing ≥100 zebrafish for centralized spawning.The core
components are made of impact-resistant,high temperature and sterilization-resistant PC material,easy to disassemble, clean and
sanitize.
Larval Rearing Chambe
Suitable for rearing zebrafish larvae at 5–45 dpf. It can be used with the recirculating zebrafish housing system. The outer shell
and supports are made of PC (polycarbonate) acrylic material, fitted with perforated 304 stainless steel mesh panels.Its structur-
al design efficiently removes bottom waste to maintain smooth water circulation within the larval rearing environment, effectively
improving the survival rate of zebrafish larvae and reducing husbandry difficulty.

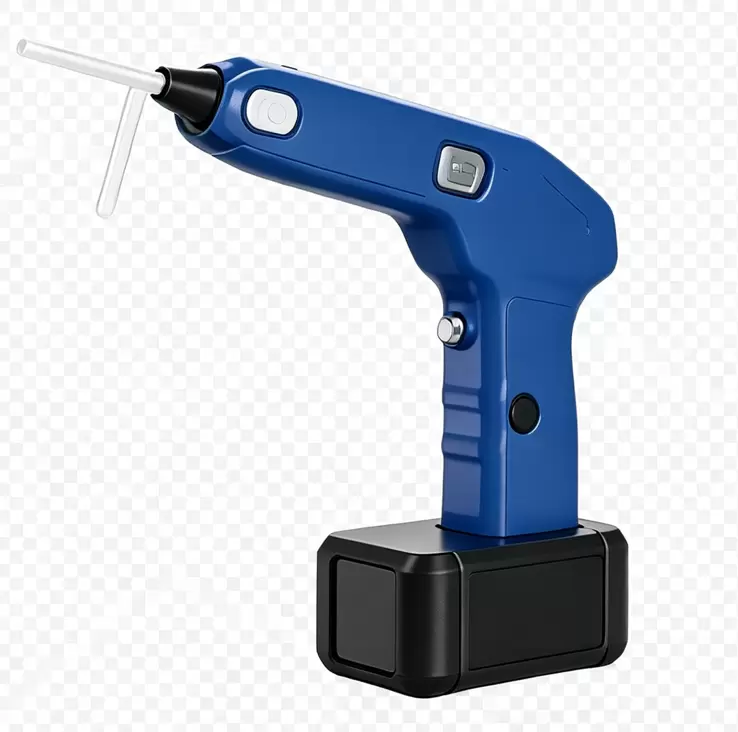

Electric Dosing Feeder
Portable electric dosing feeding unit. It supports jog and continuous modes. The feeding volume can be manually set with an
error ≤10%. Fast charging; capable of serving ≥16 fish housing racks. The parts of the unit in contact with feed are food-grade.
The material storage tank has a capacity ≥1.5 L.
